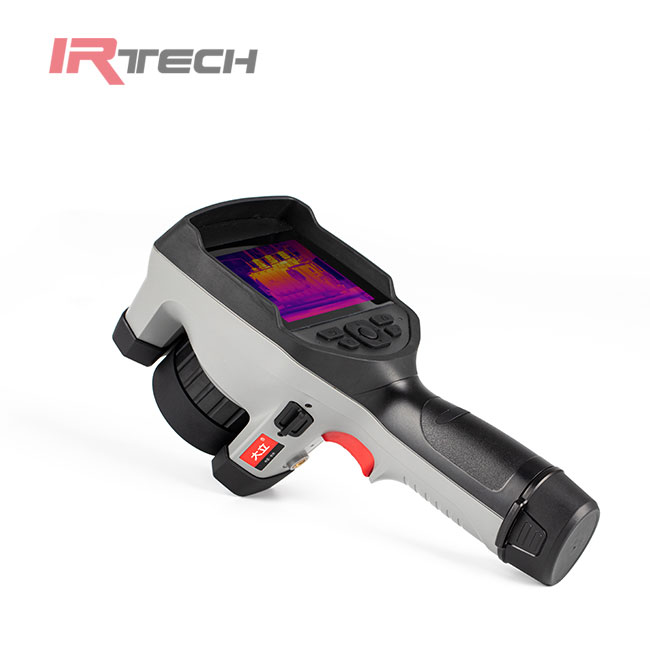

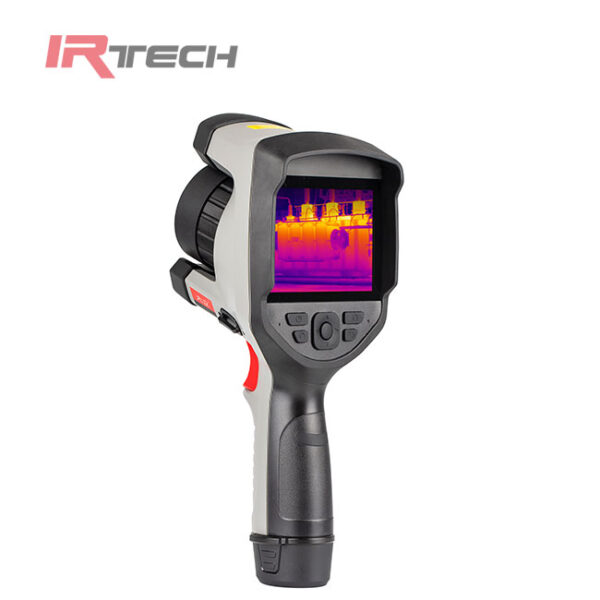

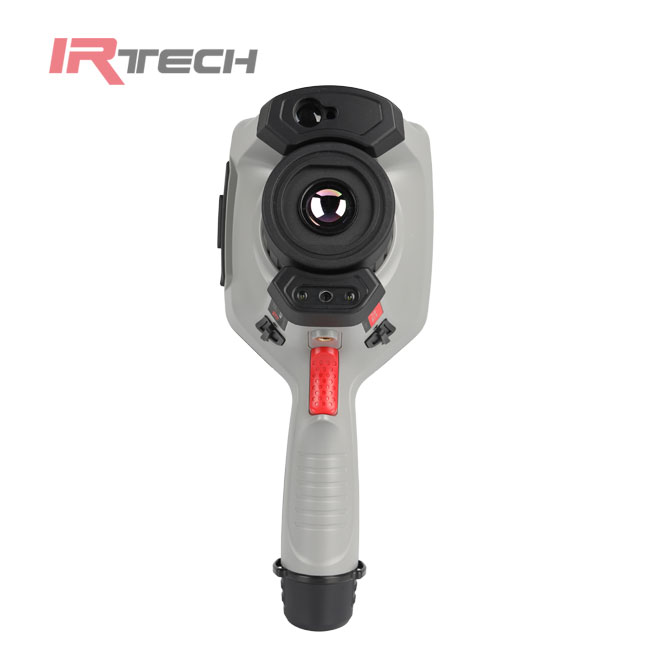

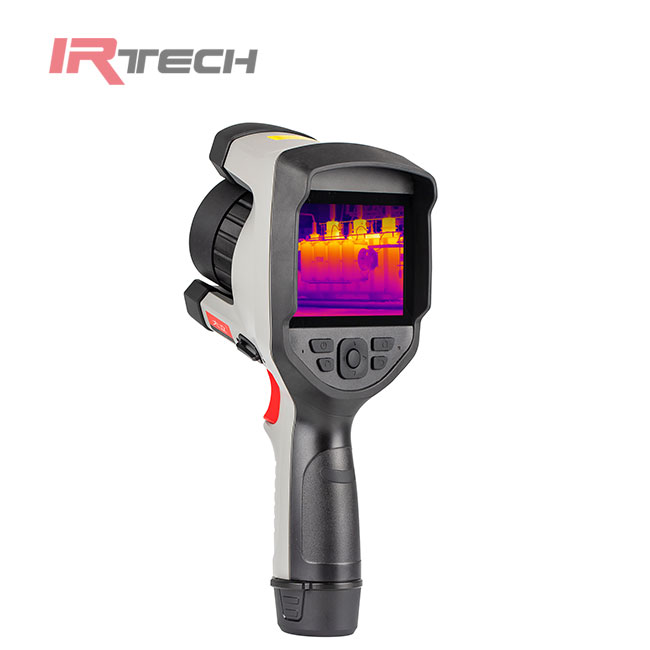

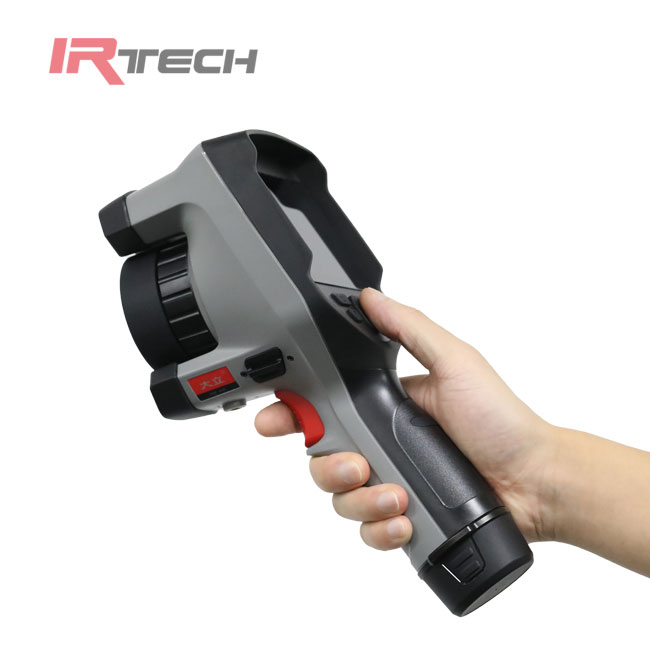

Termocamera professionale T9/10-M

Items

T9-M

T10-M

Detector

Type

Uncooled focal plane micro-thermal

Resolution

384×288

640×480

Wavelength range

8～14um

Thermal sensitivity

≤0.05℃

Frame rate

50/60Hz

Lens

Lens

Automatic Identification

Focusing method

Manual/electric/automatic

FOV

25°×19°

Focusing range

0.1m~∞

Dispaly

Resolution

640×480

Backlight

High brightness sunlight screen

Palette (pattern)

11 color codes can be selected

Image adjustment

automatic / manual


Spatial resolution

1.12mrad

0.67mrad

Super pixel function

768×576

1280×960

Display method

Infrared, visible light, picture-in-picture, dual-band fusion image (DSIE)

Digital zoom

1~4x

Visible light camera

500 million pixels

Video output

HDMI

Anchor point display

Laser positioning points are displayed on the image

Storage

Memory

TF card

Video recording

Yes, the general video format storage of this machine, timing storage can be set, support infrared, visible light, fusion mode

Image storage

Yes, infrared image JPEG format, with infrared temperature data; visible light, fusion JPEG format storage

Note

60-second voice recording, stored with the image, optional text annotation

Measurement

Temperature range

-20℃～+650℃，can be extended to 1200℃

Temperature  accuracy

±2℃ or ±2% of measured value, whichever is greater

Temperature measurement mode

Real-time 10 movable points (the hottest and coldest points are independent), 8 movable areas (the highest temperature, the lowest temperature capture, average temperature measurement), line temperature measurement, isothermal analysis, temperature difference measurement, temperature alarm (sound, color)

Atmospheric window correction

Corrected according to infrared window transmittance

Atmospheric transmittance correction

Automatic, according to the input target distance, relative humidity, ambient temperature

Background temperature correction

Automatically correct according to the entered temperature

Emissivity correction

The emissivity is adjustable from 0.01 to 1.0 (in increments of 0.01), or the emissivity can be corrected through a predefined material emissivity meter

Power system

Battery

Rechargeable lithium battery, replaceable

Battery working time

4 hours

Battery charging time

Fast charging function (external charger), can be charged randomly

Power management

Automatic sleep, automatic shutdown

Physical characteristic

Overall size

W116×D175×H278mm

Total Weight

≤1.1kg（including battery）

Handrail

Yes, can be installed on both sides

tripod

1/4″-20-UNC

Interface

Memory card slot

TF card connector

Data interface

Mini-USB Type C ，picture/video transmission

Video interface

Micro-HDMI

Power connector

Mini-USB Type C

Others

Laser

Laser rangefinder

Fill light

2 LED

Microphone

Yes

Buzzer

Yes

WiFi

Real-time image transmission, can be operated through the mobile APP control menu, stored images can be analyzed to generate reports, applicable to Android & ios systems

Bluetooth module

Audio output/input (Bluetooth headset)

GPS

Yes

Electronic compass

Yes

Set up

Date/time, temperature unit ℃/℉/K, language, LCD backlight, IP address

Environmental parameter

Operating temperature

-15℃～+50℃

storage temperature

-40℃～+70℃

Humidity

≤95% non-condensing

Protection level

IP54

Vibrate

2g，GB/T2423.10（IEC60068-2-6）

Rush

30g，GB/T2423.5（IEC60068-2-27）

Fall

2m，GB/T2423.8（IEC60068-2-32）

Security

Performance

GB/T19870-2005

Safety

GB4943.1-2011

EMC

Meet CE requirements

RoHS

2011/65/EC

Laser

IEC60825-1-2014
